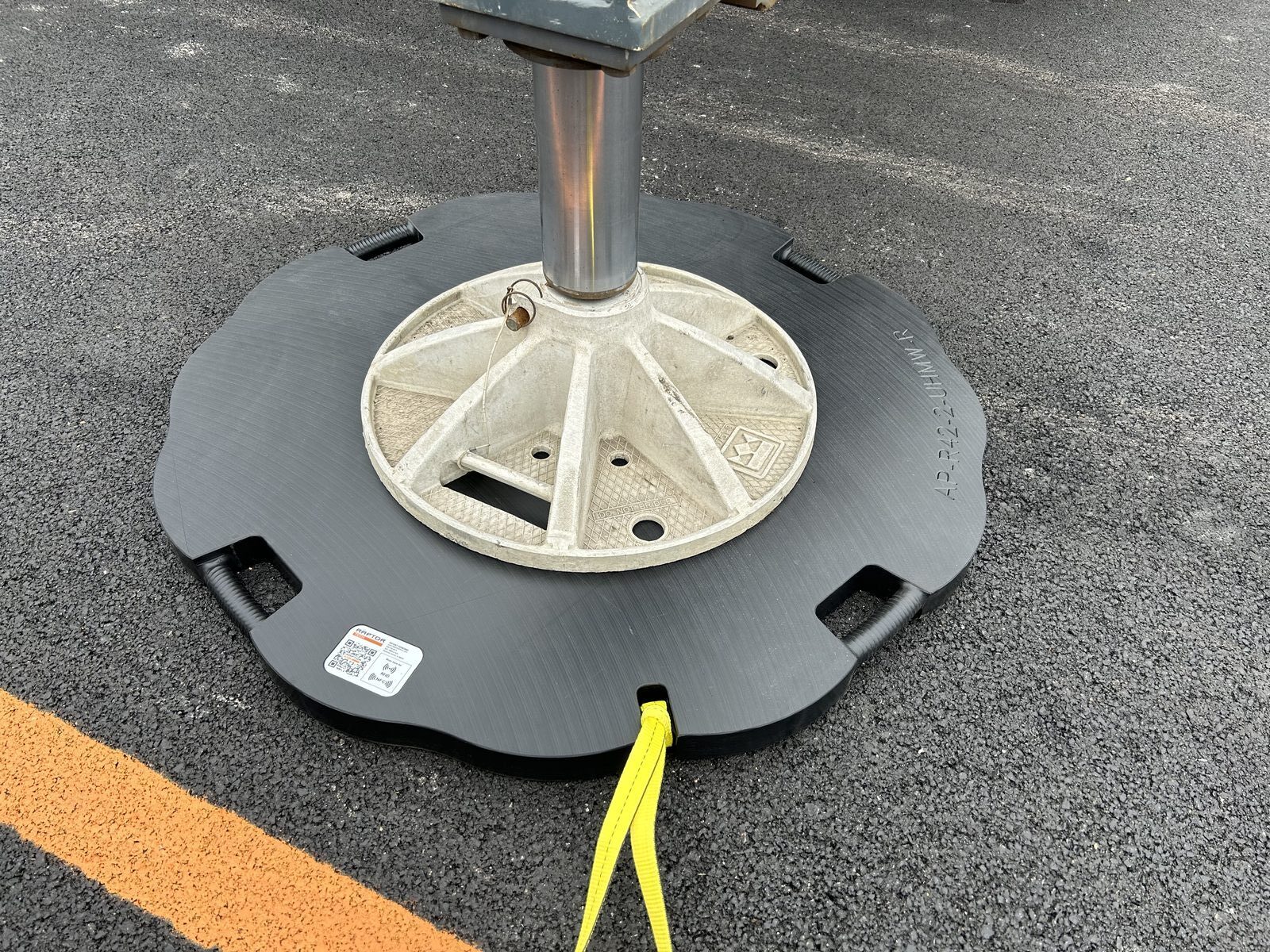

Raptor Tech Area Plus outrigger pad with contoured edge under a crane outrigger float

Area Plus® UHMW Outrigger Pads

Our Most Advanced
Outrigger Pad

The contoured edge lets your crew roll heavy pads into place without losing control, and adds bearing area at the same time. Through-hole handles and a 1,900 lb rated lifting lanyard come standard, for when rolling isn’t the right move.

CONTOURED Roll-Control Edge
LARGEST Contact Area in Its Class
1,900 LB Rated Lifting Lanyard
View Pad Sizes Get a Quote
ENGINEERED FOR MORE THAN LOAD CAPACITY

Built to Be Rolled, Lifted, or Carried

The contoured edge gives your crew a controlled way to roll a heavy pad into position, so a big pad is less likely to get away from them. And it doesn’t just make manual handling easier. It adds contact area too.

When rolling isn’t the right move, use the through-hole handles or the rated lifting lanyard. Hook it, roll it, tip it, or drag it.

COMPARE THE LINEUP

Everything in Premium, Plus More Control

The largest contact area in its class, with improved rolling and handling control.

Feature Standard Premium Most Advanced Area Plus
Handles Rope Ergonomic through-hole Ergonomic through-hole
Grip height (NIOSH V) Closer to 30″ puts less strain on the back 0″ 22″ 22″
Rated lifting lanyard 1,900 lb, for hand and crane lifting ✕ ✓ ✓
Contoured roll-control edge ✕ ✕ ✓
Largest contact area for its size ✕ ✕ ✓
RFID & NFC built in ✓ ✓ ✓
Magnetic option available ✓ ✓ ✓

What is NIOSH V? How high your hands are when a lift begins. Ground level strains the back most, and the closer to 30 inches, the better.

More control. More area. A safer crew. Why settle for less?

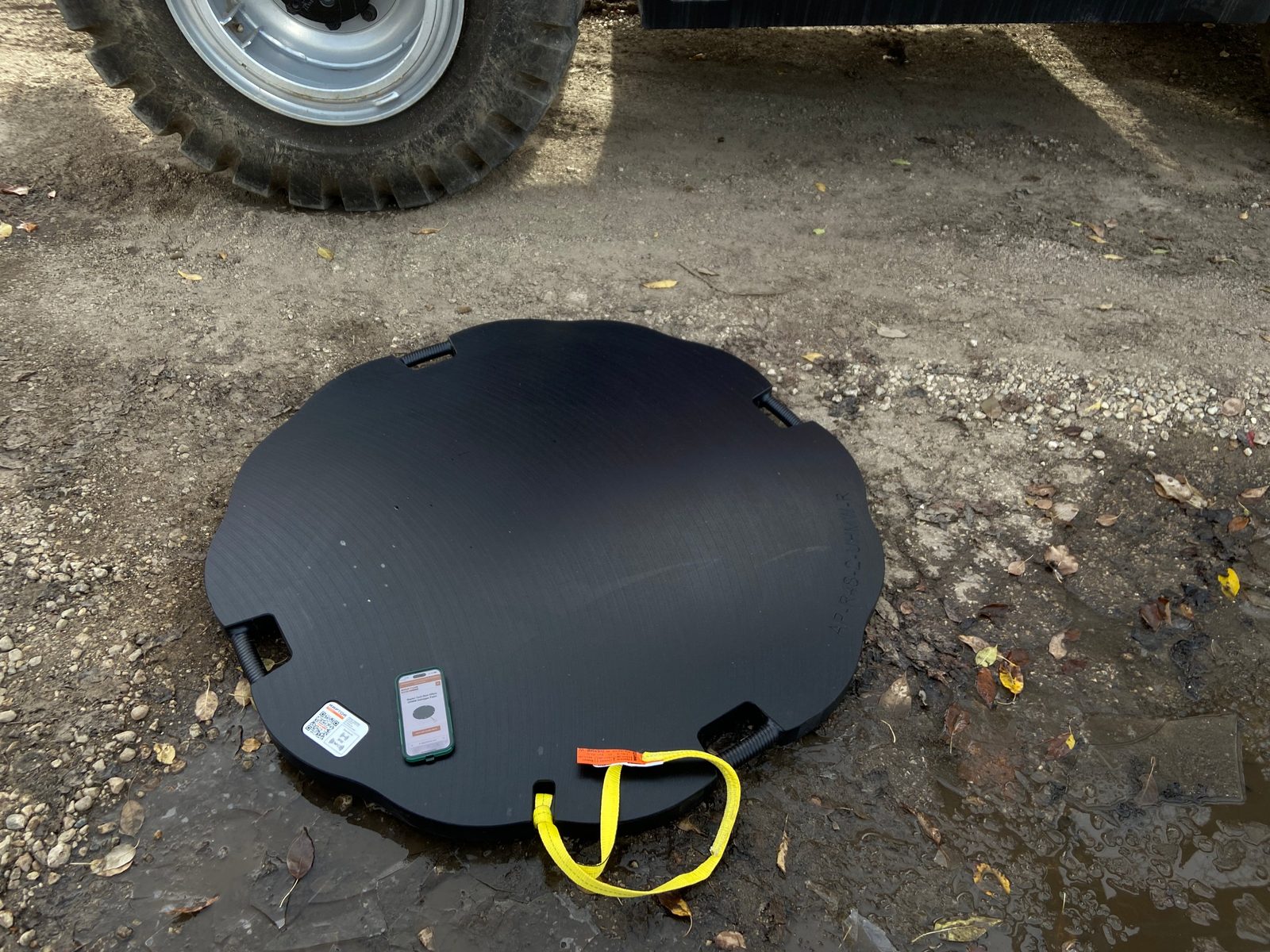

Area Plus outrigger pad with RFID and NFC tag and product data pulled up on a phone
PRODUCT TRANSPARENCY

Know Exactly What’s Under Your Crane

Every Area Plus pad has embedded RFID and NFC chips. Scan one with your phone to pull up its product data sheet, or use the chips to track your inventory automatically.

Material Test Reports and material data sheets are available for every pad, so the material is never a mystery.

If your pad supplier can’t tell you what your pads are made of, it’s worth asking why.

THE ULTIMATE SOLUTION

The Safest Lift Is the One You Don’t Have to Make

Add the magnetic option and the pad stays attached to the outrigger as it moves into position. Your crew isn’t lifting and resetting the pad at every setup, and a little downward foot pressure releases it when you’re done.

It makes the biggest difference on larger, heavier pads, where every lift you skip counts.

Aluminum floats? No problem. Add our adaptor plate and the magnetic option works for you too.

Available on every Area Plus pad. Just check “Add Magnetic Option” when you add a pad to your quote. Learn more about magnetic pads →

FIND YOUR PAD

Find Your Area Plus Outrigger Pad

Choose a thickness and size to see full specs, then add the pads you need to your quote.

What thickness do you need?

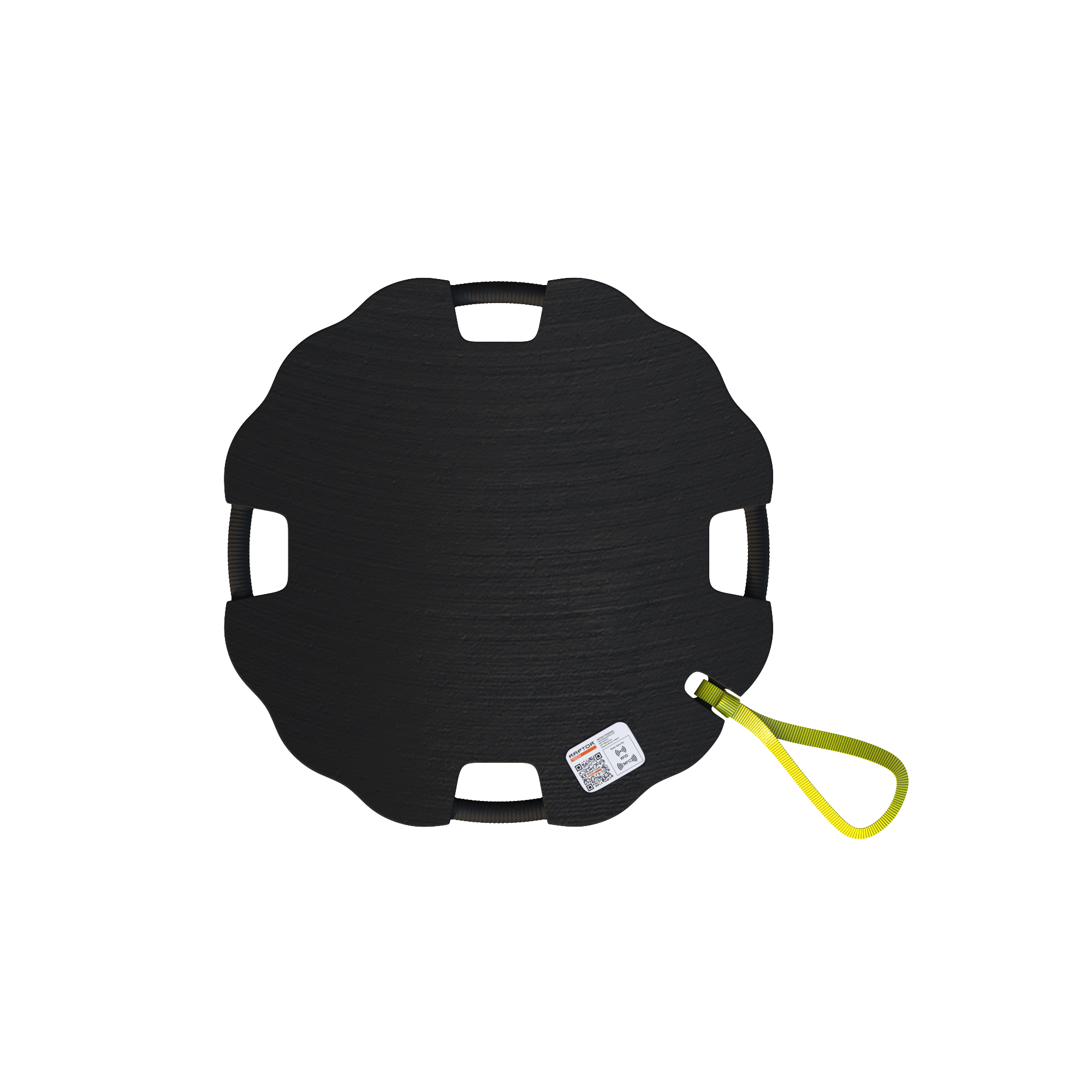

Raptor Tech Area Plus AP-R30-2 30 inch round 2 inch UHMW outrigger pad
AP-R30-2

AP-R30-2 Area Plus UHMW Outrigger Pad

A 30″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 30″ × 2″
Area 5.0 sq ft
Weight 49.8 lb
WLL 85,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

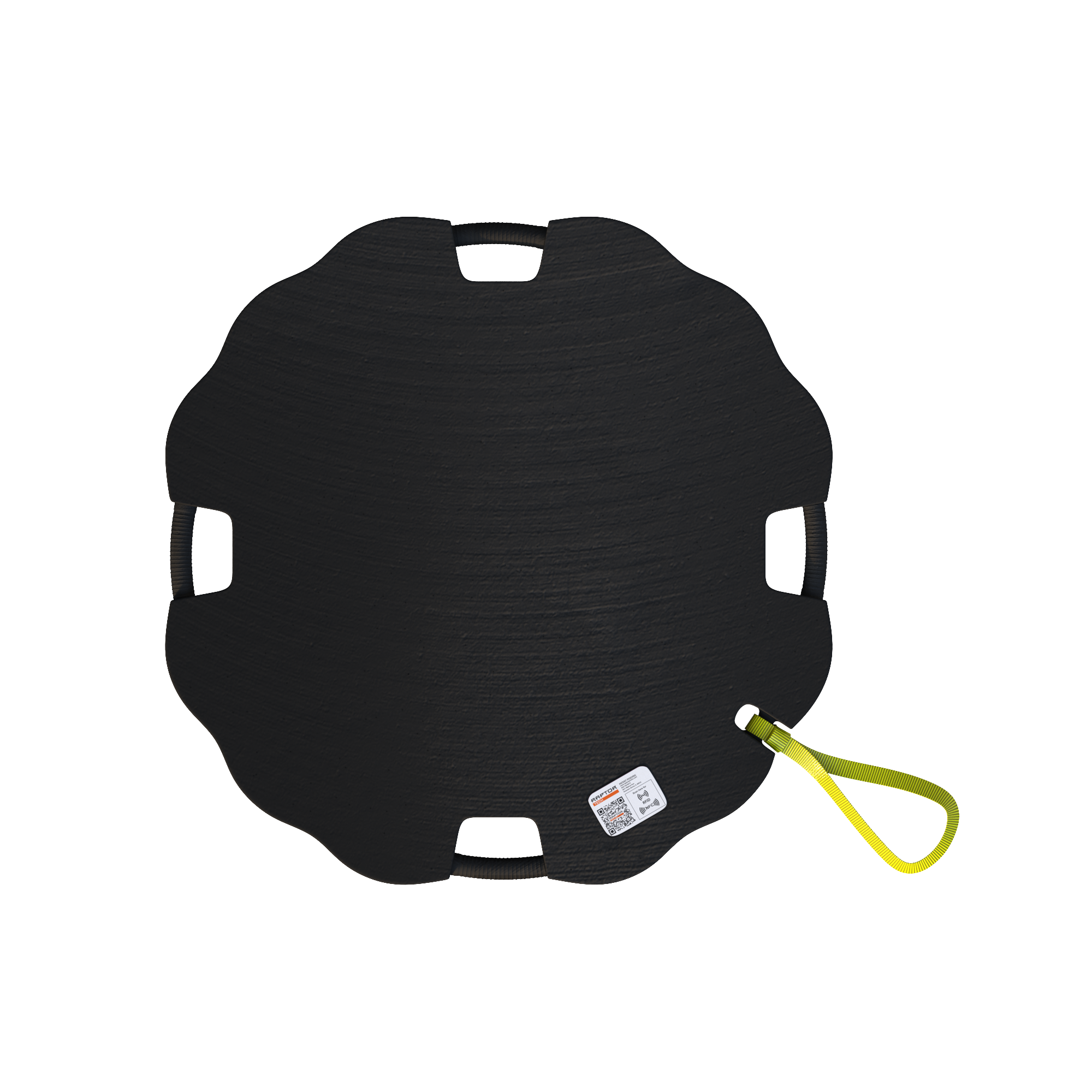

Raptor Tech Area Plus AP-R36-2 36 inch round 2 inch UHMW outrigger pad
AP-R36-2

AP-R36-2 Area Plus UHMW Outrigger Pad

A 36″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 36″ × 2″
Area 7.1 sq ft
Weight 71.2 lb
WLL 100,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

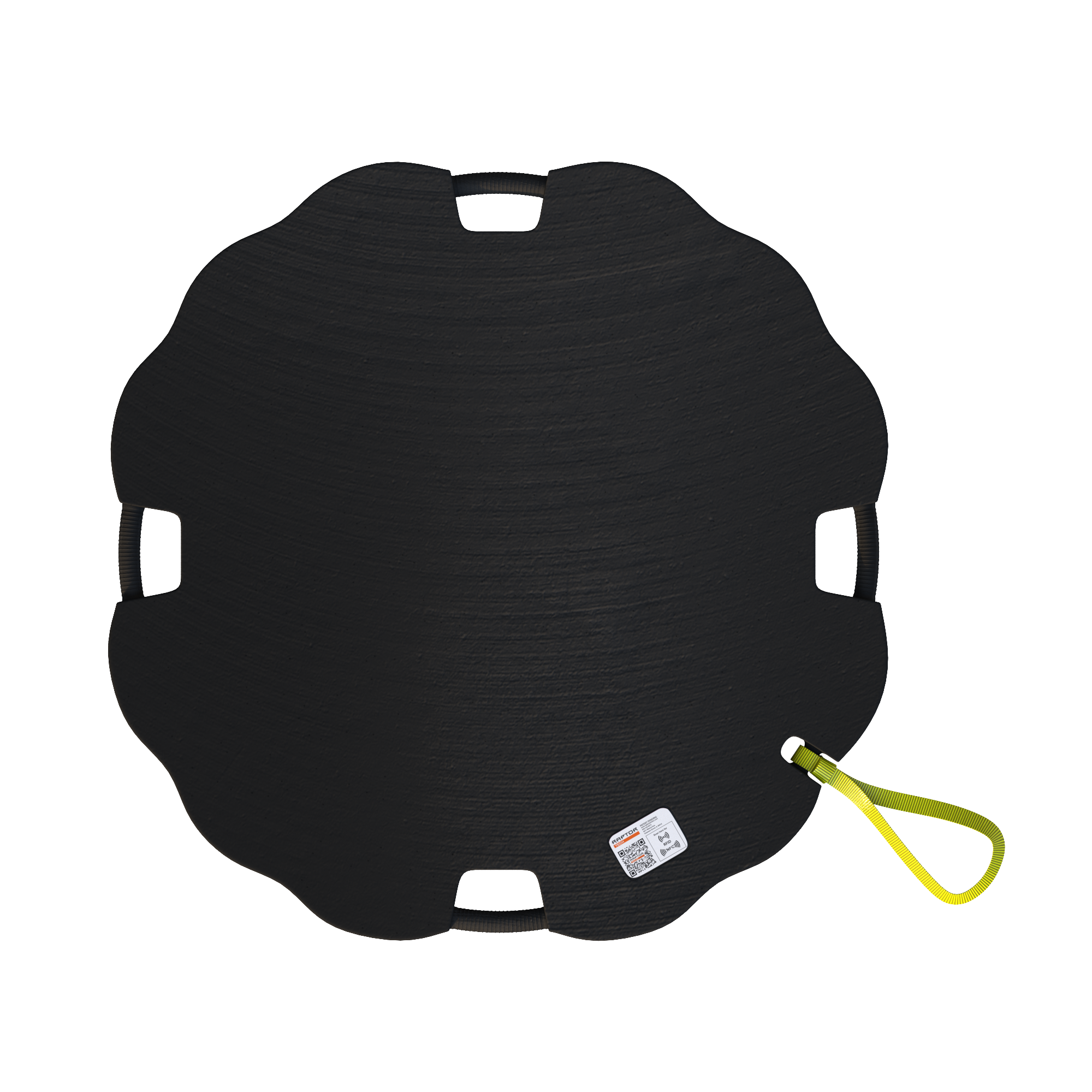

Raptor Tech Area Plus AP-R42-2 42 inch round 2 inch UHMW outrigger pad
AP-R42-2

AP-R42-2 Area Plus UHMW Outrigger Pad

A 42″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 42″ × 2″
Area 9.7 sq ft
Weight 96.5 lb
WLL 115,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

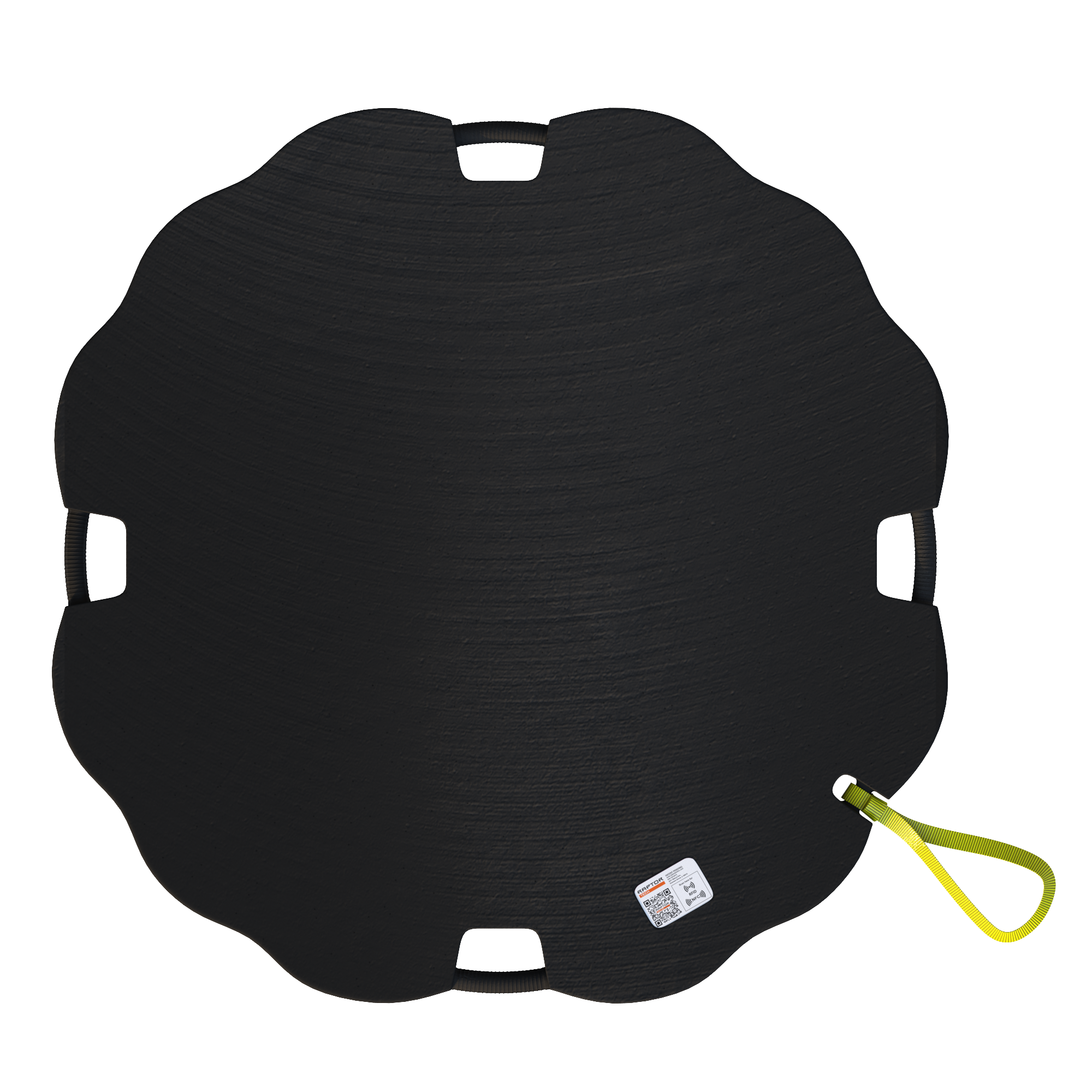

Raptor Tech Area Plus AP-R48-2 48 inch round 2 inch UHMW outrigger pad
AP-R48-2

AP-R48-2 Area Plus UHMW Outrigger Pad

A 48″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 48″ × 2″
Area 12.6 sq ft
Weight 125.5 lb
WLL 130,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

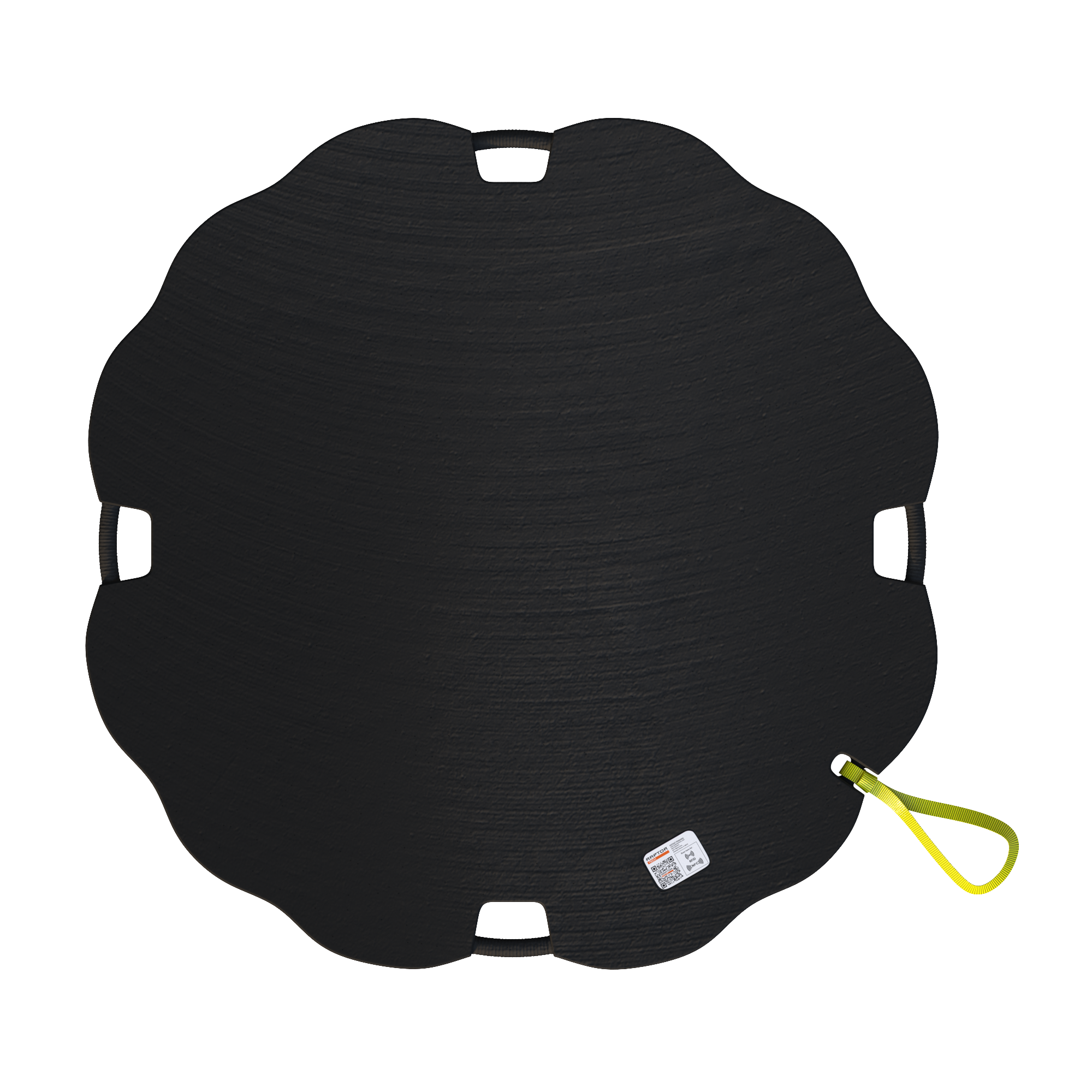

Raptor Tech Area Plus AP-R54-2 54 inch round 2 inch UHMW outrigger pad
AP-R54-2

AP-R54-2 Area Plus UHMW Outrigger Pad

A 54″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 54″ × 2″
Area 16.0 sq ft
Weight 159.1 lb
WLL 145,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

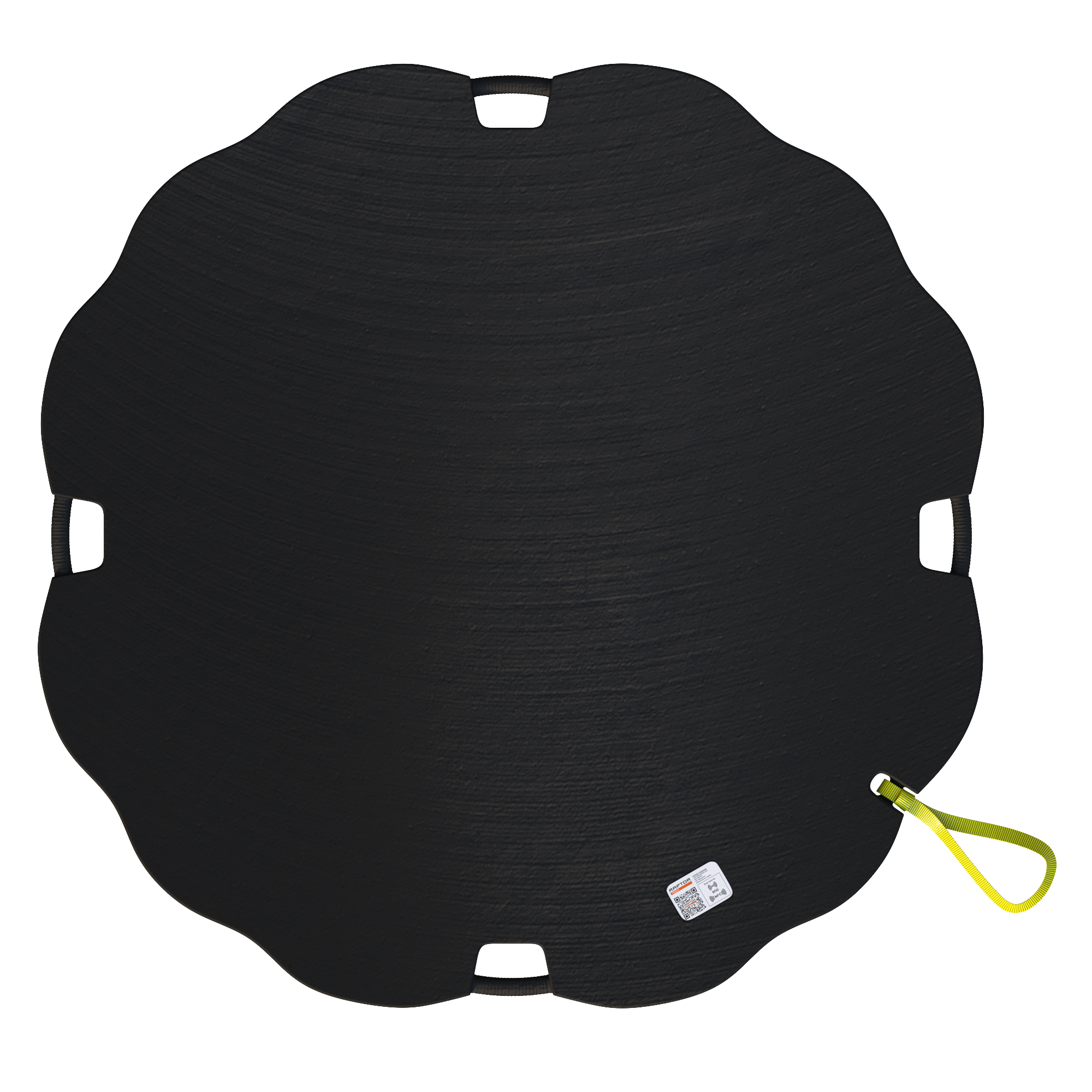

Raptor Tech Area Plus AP-R60-2 60 inch round 2 inch UHMW outrigger pad
AP-R60-2

AP-R60-2 Area Plus UHMW Outrigger Pad

A 60″ round, 2″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 60″ × 2″
Area 19.8 sq ft
Weight 196.7 lb
WLL 160,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

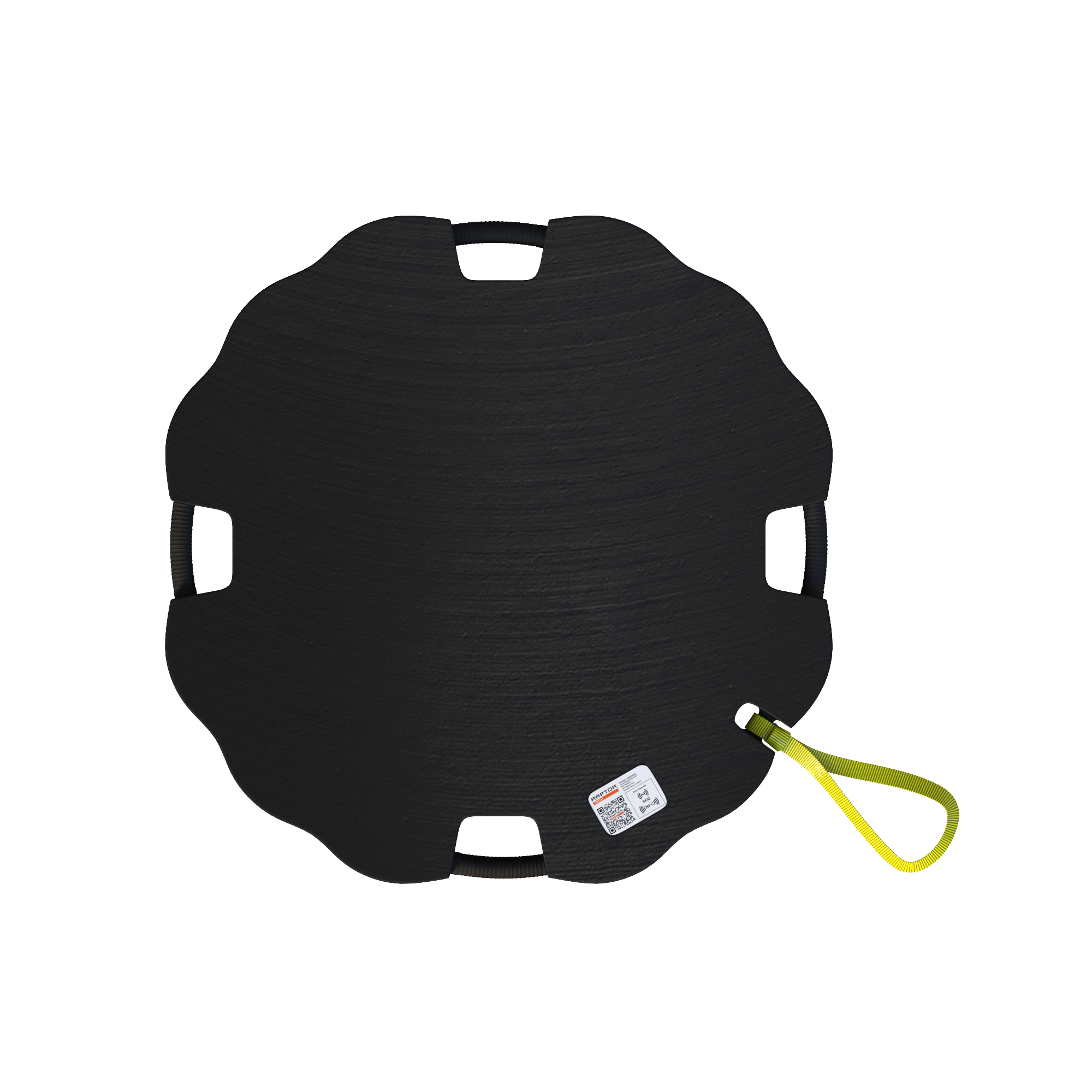

Raptor Tech Area Plus AP-R36-3 36 inch round 3 inch UHMW outrigger pad
AP-R36-3

AP-R36-3 Area Plus UHMW Outrigger Pad

A 36″ round, 3″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 36″ × 3″
Area 7.1 sq ft
Weight 106.5 lb
WLL 130,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

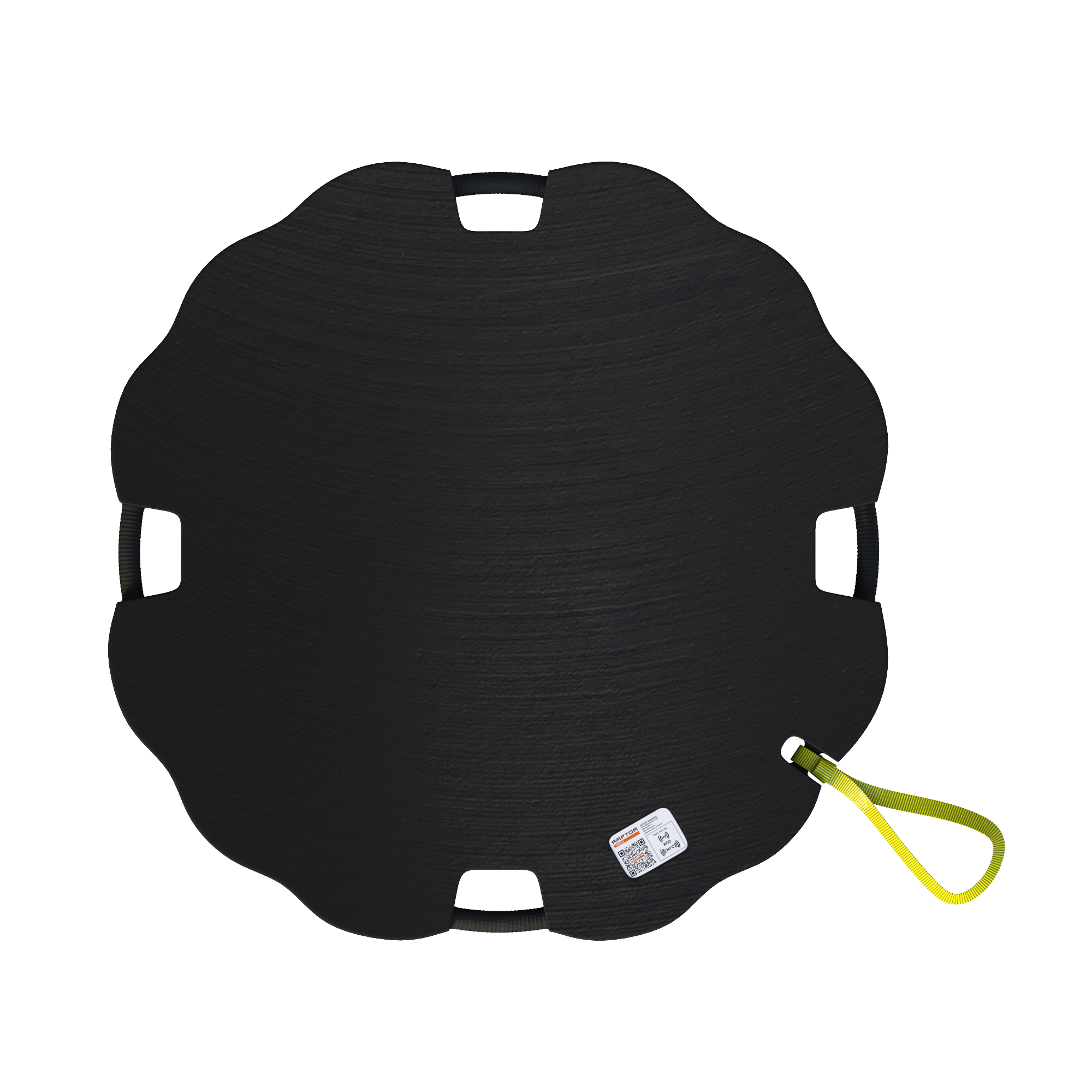

Raptor Tech Area Plus AP-R42-3 42 inch round 3 inch UHMW outrigger pad
AP-R42-3

AP-R42-3 Area Plus UHMW Outrigger Pad

A 42″ round, 3″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 42″ × 3″
Area 9.7 sq ft
Weight 144.3 lb
WLL 150,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote
Raptor Tech Area Plus AP-R48-3 48 inch round 3 inch UHMW outrigger pad
AP-R48-3

AP-R48-3 Area Plus UHMW Outrigger Pad

A 48″ round, 3″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 48″ × 3″
Area 12.6 sq ft
Weight 187.8 lb
WLL 170,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

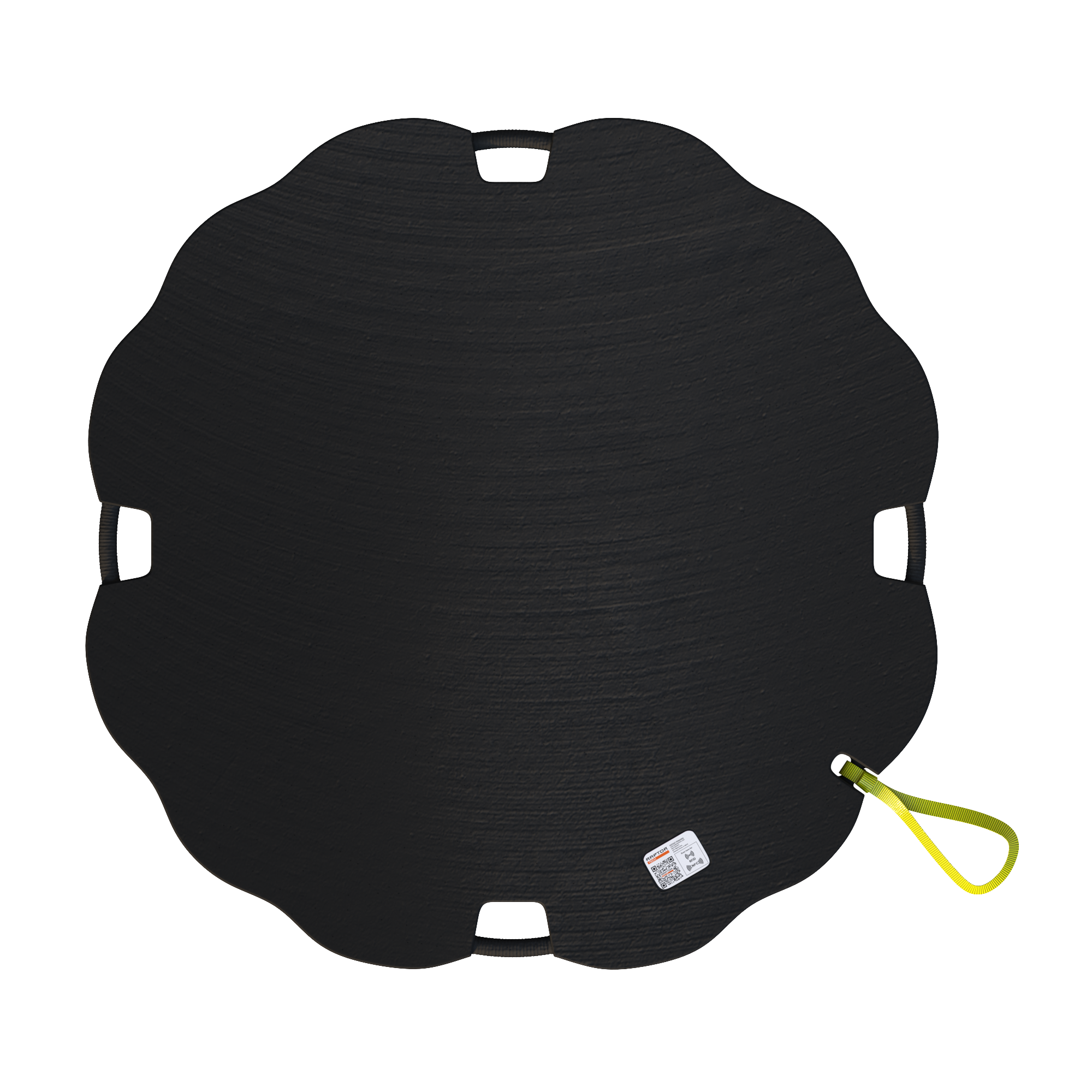

Raptor Tech Area Plus AP-R54-3 54 inch round 3 inch UHMW outrigger pad
AP-R54-3

AP-R54-3 Area Plus UHMW Outrigger Pad

A 54″ round, 3″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 54″ × 3″
Area 16.0 sq ft
Weight 238.3 lb
WLL 190,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote

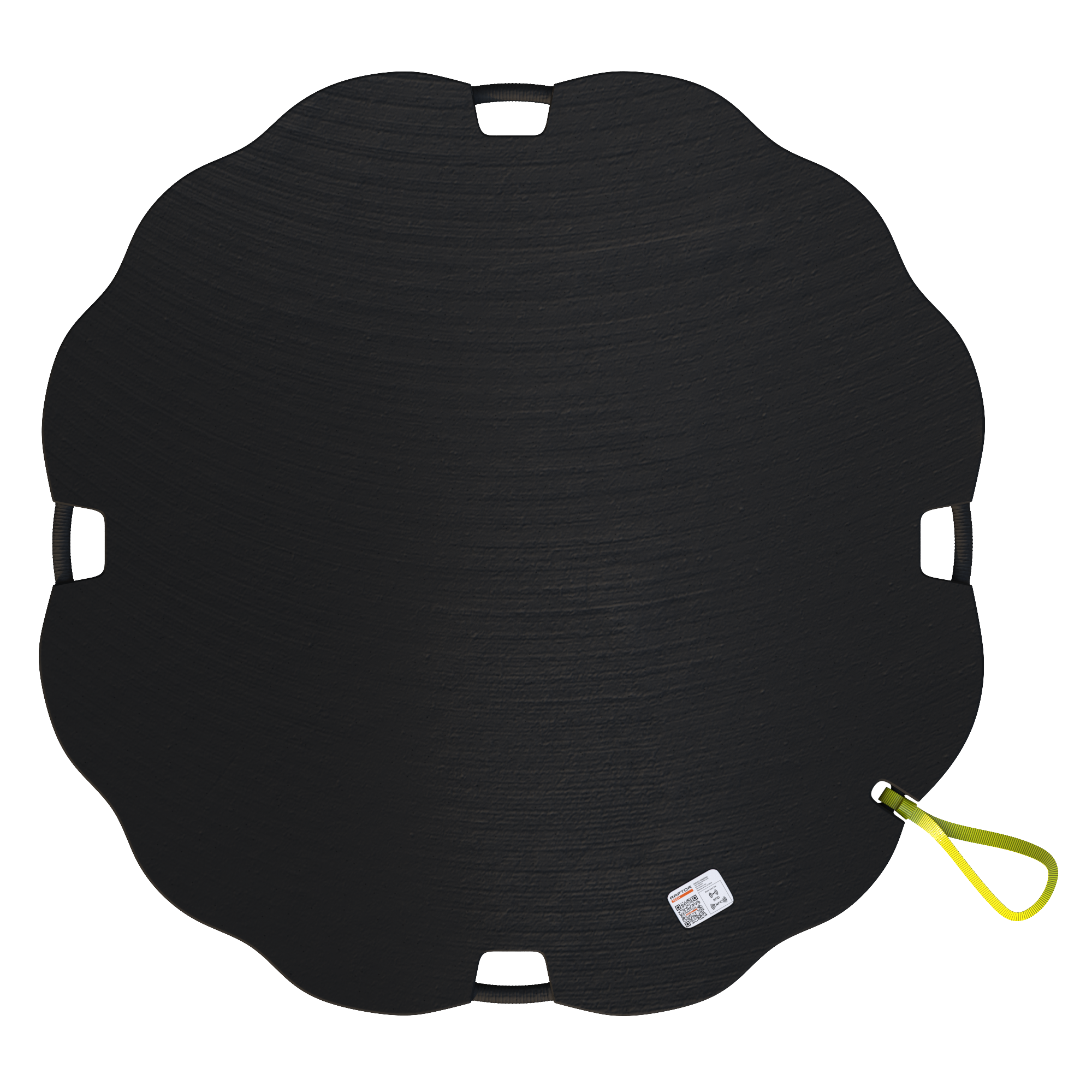

Raptor Tech Area Plus AP-R60-3 60 inch round 3 inch UHMW outrigger pad
AP-R60-3

AP-R60-3 Area Plus UHMW Outrigger Pad

A 60″ round, 3″ thick Area Plus UHMW outrigger pad with a contoured roll-control edge, ergonomic through-hole handles, and a removable lifting lanyard rated to 1,900 lb.

Size 60″ × 3″
Area 19.8 sq ft
Weight 294.6 lb
WLL 210,000 lb
Edge Contoured
Lifting Lanyard 1,900 lb
View Product Sheet Request a Quote
NEED HELP CHOOSING?

Find the Right Area Plus Pad for Your Crane

Not sure which size you need? Send us your crane make and model and either your outrigger load or the pad you’re replacing, and our team will help you find the right fit.

✓

Crane make and model

✓

Outrigger load or required capacity

✓

Pad size and quantity

✓

Float material, if adding the magnetic option
